Amstrad CPC 6128 664 464 etc Edge Connector Expansion Port Male to Male Adaptor Boards (2 Pack).

Our very own manufactured PCBs that provide the ability to extend your Amstrad CPC expansion cable ribbons or invert the connections male to male. This allow two female 50 pin edge connectors or IDC plug connections to join together.

They are also very useful with ribbon cables that have two or more connectors so that two CPC expansions can be plugged in with one double female ribbon cable. Some original Amstrad CPC expansions have a built in ribbon cable that can't be removed but has a 2nd female connector, so this can be then added to plug another peripheral or expansion in also.

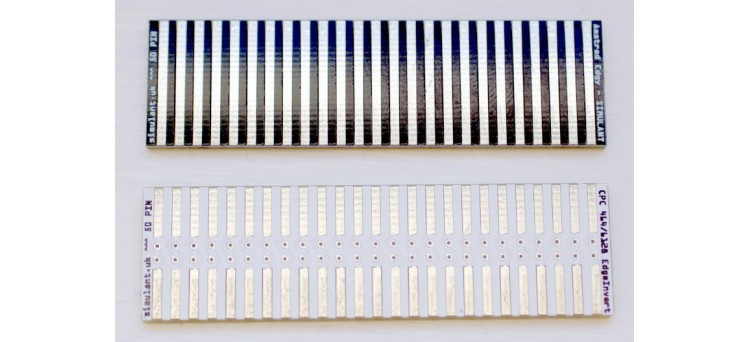

Pack Includes:

  • 1x Black "Edgy" straight-through PCB connector (with pin 1 going to pin 1 and pin 2 going to pin 2 and so forth).
    This allows Pin-to-Pin or Edge-to-Edge connections.
  • 1x White "EdgeInvert" PCB connector that inverts the top and bottom pins (with Pin 1 on the top going to Pin 50 and Pin 2 on the top going to Pin 49 on the bottom etc)
    Allowing the connectors to be flipped over the other way up on your peripherals or expansions which is useful to orientate them correctly to sit on your desk or such.

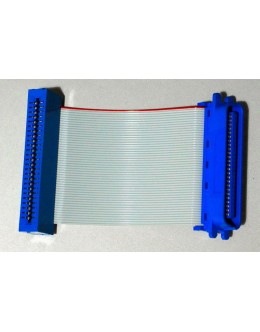

Note: The second photo with the blue connector and ribbon cable is not included and just illustrates the fitting of these 50pin edge connector boards.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Amstrad CPC 6128 664 464 Edge Connector Expansion Port Male to Male / Edge to Edge Adaptor Boards (2 Pack)

  • Product Code: Amstrad CPC Edgy and EdgeInvert 2 Pack
  • Availability: In Stock
  • £7.99
